Nikon CSU-W1 Spinning Disk Confocal



Bio Unit 1:  Room 336

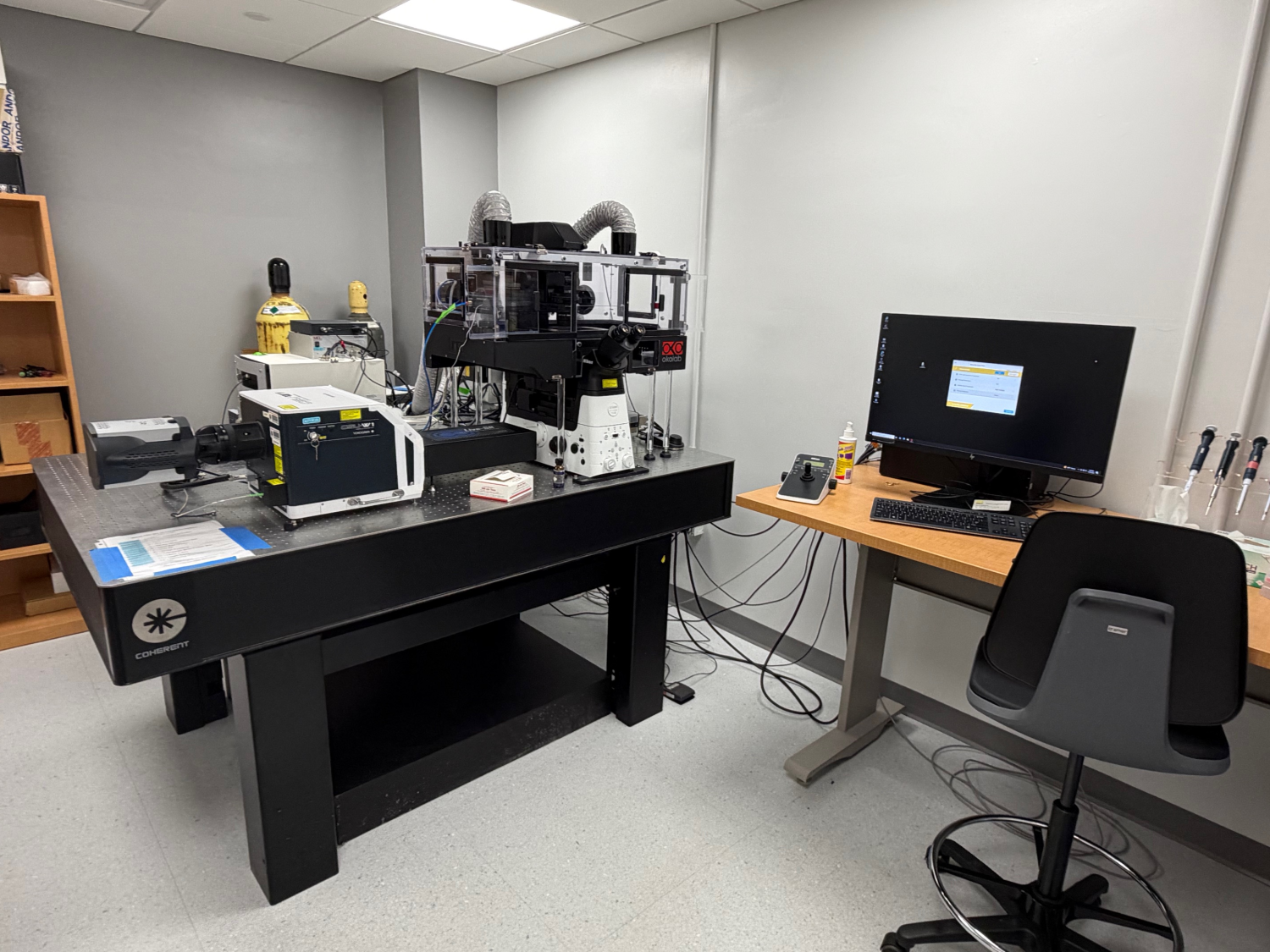

Nikon CSU-W1 Spinning Disk Confocal

- Nikon Ti2-E Motorized Inverted Microscope with Perfect Focus System

  • Fluorescence
  • DIC and Brightfield
  • Time Lapse
  • Large-image Stitching
  • Z-stacks
  • Multichannel

- Confocal Laser Lines (nm):

  • 405
  • 488
  • 561
  • 640

- Galvo Mirror Device for Photo-bleaching and Photo-stimulation (405nm Laser only)

- Piezo Z for Rapid Z-stack Acquisition

- Camera Options:

  •  Zyla 4.2 Plus sCMOS - Wide field fluorescence, DIC, Brightfield
  •  iXon Life 888 EMCCD - Confocal and Wide field

- Objectives:

  • Plan Apo Lambda 4x, NA 0.2
  • Plan Apo Lambda 10x, NA 0.45
  • Plan Apo Lambda S LWD 20x, NA 0.95 Water
  • Plan Apo Lambda 40x, NA 0.95
  • Plan Apo Lambda S LWD 40x, NS 1.15 Water
  • Plan Apo Lambda 60x, NA 1.4 Oil
  • Plan Apo Lambda 100x, NA 1.4 Oil

- OKO Labs Environmental Enclosure for Live-Cell Imaging

- NIS-Elements Software for Intelligent Image Acquisition and Analysis, Deconvolution module

- NIS-Elements Software for Intelligent Image Acquisition and Analysis

Nikon Resolution Calculator



Training:
